2026 Grand Design Imagine AIM 16MLA

Base MSRP$35,566.00
Options Added$0
Total$35,566

 IDENTIFICATION
Suggested List $35,566
Type Travel Trailer
Basic Warranty (Months) 12
Revision Status Carryover
 SPECIFICATIONS
Maximum Sleeping Capacity 4
Number Of Slideouts 1
Length (ft-in / m) 19' 8.0' / 6.0
Interior Height (in / mm) 78.0 / 1981.2
Base Weight (lbs / kg) 3813.0 / 1729.6
Carrying Capacity (lbs / kg) 982.0 / 445.4
Hitch Weight (lbs / kg) 432.0 / 196.0
Number Of Axles 1
Air Conditioning (BTUs) 13500.0
Heater (BTUs) 20000.0
 HOLDING TANKS
Fresh Water Capacity (gal / L) 37.0 / 140.1
Gray Water Capacity (gal / L) 45.0 / 170.3
Black Water Capacity (gal / L) 37.0 / 140.1
Propane Capacity (gal / lbs) 9.4 / 40.0
Water Heater Tank (gal / L) 0.0 / 0.0
 INTERIOR FEATURES
Air Conditioning Standard
Kitchen Dinette Pedestal Table
Interior Flooring Type Vinyl
Master Bedroom Not Available
Number Of Bathrooms 1
Shower Standard
Television Standard
DVD Player Not Available
 EXTERIOR FEATURES
Patio Awning Standard
Leveling Jack Type Front Manual / Rear Manual
Power Retractable Entry Steps Not Available

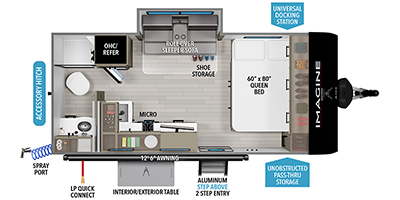

Floorplan - Model History - Choose Competitor
